I would like to note down these two projects in complete form for future reference. First, Raymond’s virtual startup MVP; second, Tim’s pygame Checker. I would also like to find a complete package for creating a db system for students/employees in an institution.
First, Raymond’s full illustration of creating an MVP startup using Python:
#lean startup MVP deliverable by Raymond again
import math
class Circle(object) : # new-style class
'An advanced circle analytic toolkit'
# flyweight design pattern suppresses
# the instance dictionary
__slots__ = ['diameter']
version = '0.7'
def __init__(self, radius):
self.radius = radius # instance variable
@property # convert dotted access to method calls
def radius(self):
'Radius of circle'
return self.diameter / 2.0
@radius.setter
def radius(self, radius):
self.diameter = radius * 2.0
@staticmethod # attach function to classes
def angle_to_grade(self, angle) :
'Convert angle in degree to a percentage grade'
return math.tan(math.radians(angle)) * 100.0
def area(self) :
'perform quadrature on a shape of uniform radius'
p = self.__perimeter()
r = p / math.pi / 2.0
return math.pi * r ** 2.0
def perimeter(self):
return 2.0 * math.pi * self.radius
__perimeter = perimeter
@classmethod #alternative constructor
def from_bbd(cls, bbd) :
'Construct a circle from a bounding box diagonal'
radius = bbd / 2.0 / math.sqrt(2.0)
return Circle(radius)
class Tire(Circle) :
'Tires are circles with a corrected perimeter'
def perimeter(self) :
'Circumference corrected for the rubber'
return Circle.perimeter(self) * 1.25
from random import random, seed
seed(8675309)
print('Using Circuituous (tm) version', Circle.version)
n = 10
circles = [Circle(random()) for i in range(n)]
print('The average area of', n, 'random circles')
avg = sum([c.area() for c in circles]) / n
print('is %.if') %avg
There are still hiccups for me along the way as to why do so, eventually things will make more sense when applying them. So summarize, the gist is
Now move on to Tim’s full-blown process of make a checker Pygame. The key to learn is how he comes up with the framework or architect?

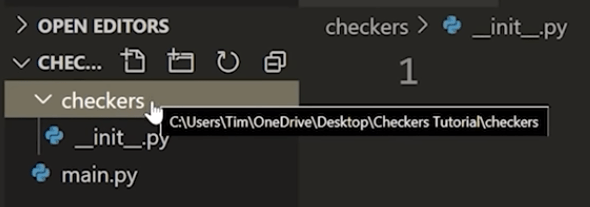

First, the github repo contains major folder “checkers” and main.py and __init__.py as usual, however, within the “checkers” folder, another __init__.py is created to make it easy to import modules in main.py.

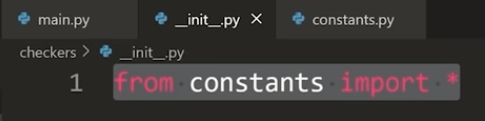

Meanwhile, within init file, what if I need to import methods/instance in the same subfolder – checkers? Simply from constants import *

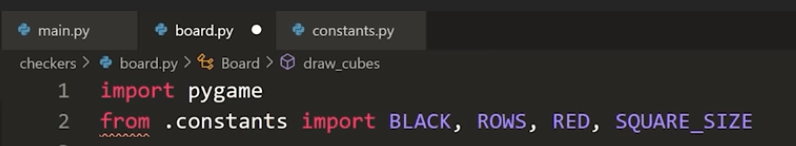

In the parallel script – board.py

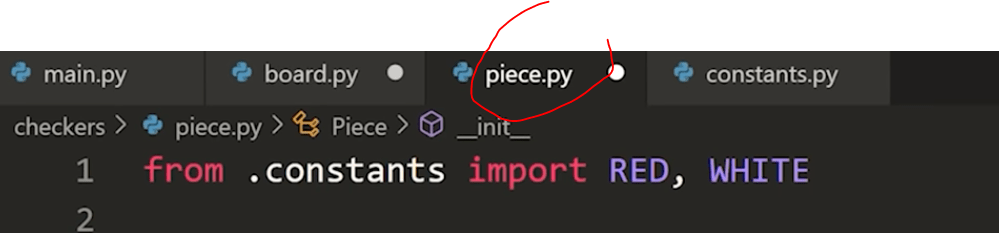

Likewise, in the parallel piece.py
In the main.py,
Second, dive deep to the main.py script – the Raymond’s MVP demo didn’t include such main.py though, but it’s widely used in almost all Python products.
# Assets: https://techwithtim.net/wp-content/uploads/2020/09/assets.zip
import pygame
from checkers.constants import WIDTH, HEIGHT, SQUARE_SIZE, RED
from checkers.game import Game
from minimax.algorithm import minimax
FPS = 60
WIN = pygame.display.set_mode((WIDTH, HEIGHT))
pygame.display.set_caption('Checkers')
def get_row_col_from_mouse(pos):
x, y = pos
row = y // SQUARE_SIZE
col = x // SQUARE_SIZE
return row, col
def main():
run = True
clock = pygame.time.Clock()
game = Game(WIN)
while run:
clock.tick(FPS)
if game.winner() != None:
print(game.winner())
run = False
for event in pygame.event.get():
if event.type == pygame.QUIT:
run = False
if event.type == pygame.MOUSEBUTTONDOWN:
pos = pygame.mouse.get_pos()
row, col = get_row_col_from_mouse(pos)
game.select(row, col)
game.update()
pygame.quit()
main()
So the logic of designing this main.py together with constants.py, board.py, piece.py and game.py is essential to learn.
