In Finrobot, there are three folders: agents, data_source, and functional, along with utils and toolkit Python files.
agents library include
from finrobot.data_source import *
from finrobot.functional import *
from textwrap import dedent
library = [
{
"name": "Software_Developer",
"profile": "As a Software Developer for this position, you must be able to work collaboratively in a group chat environment to complete tasks assigned by a leader or colleague, primarily using Python programming expertise, excluding the need for code interpretation skills.",
},
{
"name": "Data_Analyst",
"profile": "As a Data Analyst for this position, you must be adept at analyzing data using Python, completing tasks assigned by leaders or colleagues, and collaboratively solving problems in a group chat setting with professionals of various roles. Reply 'TERMINATE' when everything is done.",
},
{
"name": "Programmer",
"profile": "As a Programmer for this position, you should be proficient in Python, able to effectively collaborate and solve problems within a group chat environment, and complete tasks assigned by leaders or colleagues without requiring expertise in code interpretation.",
},
{
"name": "Accountant",
"profile": "As an accountant in this position, one should possess a strong proficiency in accounting principles, the ability to effectively collaborate within team environments, such as group chats, to solve tasks, and have a basic understanding of Python for limited coding tasks, all while being able to follow directives from leaders and colleagues.",
},
{
"name": "Statistician",
"profile": "As a Statistician, the applicant should possess a strong background in statistics or mathematics, proficiency in Python for data analysis, the ability to work collaboratively in a team setting through group chats, and readiness to tackle and solve tasks delegated by supervisors or peers.",
},
{
"name": "IT_Specialist",
"profile": "As an IT Specialist, you should possess strong problem-solving skills, be able to effectively collaborate within a team setting through group chats, complete tasks assigned by leaders or colleagues, and have proficiency in Python programming, excluding the need for code interpretation expertise.",
},
{
"name": "Artificial_Intelligence_Engineer",
"profile": "As an Artificial Intelligence Engineer, you should be adept in Python, able to fulfill tasks assigned by leaders or colleagues, and capable of collaboratively solving problems in a group chat with diverse professionals.",
},
{
"name": "Financial_Analyst",
"profile": "As a Financial Analyst, one must possess strong analytical and problem-solving abilities, be proficient in Python for data analysis, have excellent communication skills to collaborate effectively in group chats, and be capable of completing assignments delegated by leaders or colleagues.",
},
{
"name": "Market_Analyst",
"profile": "As a Market Analyst, one must possess strong analytical and problem-solving abilities, collect necessary financial information and aggregate them based on client's requirement. For coding tasks, only use the functions you have been provided with. Reply TERMINATE when the task is done.",
"toolkits": [
FinnHubUtils.get_company_profile,
FinnHubUtils.get_company_news,
FinnHubUtils.get_basic_financials,
YFinanceUtils.get_stock_data,
],
},
{
"name": "Expert_Investor",
"profile": dedent(
f"""
Role: Expert Investor
Department: Finance
Primary Responsibility: Generation of Customized Financial Analysis Reports
Role Description:
As an Expert Investor within the finance domain, your expertise is harnessed to develop bespoke Financial Analysis Reports that cater to specific client requirements. This role demands a deep dive into financial statements and market data to unearth insights regarding a company's financial performance and stability. Engaging directly with clients to gather essential information and continuously refining the report with their feedback ensures the final product precisely meets their needs and expectations.
Key Objectives:
Analytical Precision: Employ meticulous analytical prowess to interpret financial data, identifying underlying trends and anomalies.
Effective Communication: Simplify and effectively convey complex financial narratives, making them accessible and actionable to non-specialist audiences.
Client Focus: Dynamically tailor reports in response to client feedback, ensuring the final analysis aligns with their strategic objectives.
Adherence to Excellence: Maintain the highest standards of quality and integrity in report generation, following established benchmarks for analytical rigor.
Performance Indicators:
The efficacy of the Financial Analysis Report is measured by its utility in providing clear, actionable insights. This encompasses aiding corporate decision-making, pinpointing areas for operational enhancement, and offering a lucid evaluation of the company's financial health. Success is ultimately reflected in the report's contribution to informed investment decisions and strategic planning.
Reply TERMINATE when everything is settled.
"""
),
"toolkits": [
FMPUtils.get_sec_report, # Retrieve SEC report url and filing date
IPythonUtils.display_image, # Display image in IPython
TextUtils.check_text_length, # Check text length
ReportLabUtils.build_annual_report, # Build annual report in designed pdf format
ReportAnalysisUtils, # Expert Knowledge for Report Analysis
ReportChartUtils, # Expert Knowledge for Report Chart Plotting
],
},
]
library = {d["name"]: d for d in library}prompts.py include:
from textwrap import dedent
leader_system_message = dedent(
"""
You are the leader of the following group members:
{group_desc}
As a group leader, you are responsible for coordinating the team's efforts to achieve the project's objectives. You must ensure that the team is working together effectively and efficiently.
- Summarize the status of the whole project progess each time you respond.
- End your response with an order to one of your team members to progress the project, if the objective has not been achieved yet.
- Orders should be follow the format: \"[<name of staff>] <order>\".
- Orders need to be detailed, including necessary time period information, stock information or instruction from higher level leaders.
- Make only one order at a time.
- After receiving feedback from a team member, check the results of the task, and make sure it has been well completed before proceding to th next order.
Reply "TERMINATE" in the end when everything is done.
"""
)
role_system_message = dedent(
"""
As a {title}, your reponsibilities are as follows:
{responsibilities}
Reply "TERMINATE" in the end when everything is done.
"""
)
order_template = dedent(
"""
Follow leader's order and complete the following task with your group members:
{order}
For coding tasks, provide python scripts and executor will run it for you.
Save your results or any intermediate data locally and let group leader know how to read them.
DO NOT include "TERMINATE" in your response until you have received the results from the execution of the Python scripts.
If the task cannot be done currently or need assistance from other members, report the reasons or requirements to group leader ended with TERMINATE.
"""
)utils.py include
import re
from .prompts import order_template
def instruction_trigger(sender):
# Check if the last message contains the path to the instruction text file
return "instruction & resources saved to" in sender.last_message()["content"]
def instruction_message(recipient, messages, sender, config):
# Extract the path to the instruction text file from the last message
full_order = recipient.chat_messages_for_summary(sender)[-1]["content"]
txt_path = full_order.replace("instruction & resources saved to ", "").strip()
with open(txt_path, "r") as f:
instruction = f.read() + "\n\nReply TERMINATE at the end of your response."
return instruction
def order_trigger(sender, name, pattern):
# print(pattern)
# print(sender.name)
return sender.name == name and pattern in sender.last_message()["content"]
def order_message(pattern, recipient, messages, sender, config):
full_order = recipient.chat_messages_for_summary(sender)[-1]["content"]
pattern = rf"\[{pattern}\](?::)?\s*(.+?)(?=\n\[|$)"
match = re.search(pattern, full_order, re.DOTALL)
if match:
order = match.group(1).strip()
else:
order = full_order
return order_template.format(order=order)workflow.py include:
from .agent_library import library
from typing import Any, Callable, Dict, List, Optional, Annotated
import autogen
from autogen.cache import Cache
from autogen import (
ConversableAgent,
AssistantAgent,
UserProxyAgent,
GroupChat,
GroupChatManager,
register_function,
)
from collections import defaultdict
from functools import partial
from abc import ABC, abstractmethod
from ..toolkits import register_toolkits
from ..functional.rag import get_rag_function
from .utils import *
from .prompts import leader_system_message, role_system_message
class FinRobot(AssistantAgent):
def __init__(
self,
agent_config: str | Dict[str, Any],
system_message: str | None = None, # overwrites previous config
toolkits: List[Callable | dict | type] = [], # overwrites previous config
proxy: UserProxyAgent | None = None,
**kwargs,
):
orig_name = ""
if isinstance(agent_config, str):
orig_name = agent_config
name = orig_name.replace("_Shadow", "")
assert name in library, f"FinRobot {name} not found in agent library."
agent_config = library[name]
agent_config = self._preprocess_config(agent_config)
assert agent_config, f"agent_config is required."
assert agent_config.get("name", ""), f"name needs to be in config."
name = orig_name if orig_name else agent_config["name"]
default_system_message = agent_config.get("profile", None)
default_toolkits = agent_config.get("toolkits", [])
system_message = system_message or default_system_message
self.toolkits = toolkits or default_toolkits
name = name.replace(" ", "_").strip()
super().__init__(
name, system_message, description=agent_config["description"], **kwargs
)
if proxy is not None:
self.register_proxy(proxy)
def _preprocess_config(self, config):
role_prompt, leader_prompt, responsibilities = "", "", ""
if "responsibilities" in config:
title = config["title"] if "title" in config else config.get("name", "")
if "name" not in config:
config["name"] = config["title"]
responsibilities = config["responsibilities"]
responsibilities = (
"\n".join([f" - {r}" for r in responsibilities])
if isinstance(responsibilities, list)
else responsibilities
)
role_prompt = role_system_message.format(
title=title,
responsibilities=responsibilities,
)
name = config.get("name", "")
description = (
f"Name: {name}\nResponsibility:\n{responsibilities}"
if responsibilities
else f"Name: {name}"
)
config["description"] = description.strip()
if "group_desc" in config:
group_desc = config["group_desc"]
leader_prompt = leader_system_message.format(group_desc=group_desc)
config["profile"] = (
(role_prompt + "\n\n").strip()
+ (leader_prompt + "\n\n").strip()
+ config.get("profile", "")
).strip()
return config
def register_proxy(self, proxy):
register_toolkits(self.toolkits, self, proxy)
class SingleAssistantBase(ABC):
def __init__(
self,
agent_config: str | Dict[str, Any],
llm_config: Dict[str, Any] = {},
):
self.assistant = FinRobot(
agent_config=agent_config,
llm_config=llm_config,
proxy=None,
)
@abstractmethod
def chat(self):
pass
@abstractmethod
def reset(self):
pass
class SingleAssistant(SingleAssistantBase):
def __init__(
self,
agent_config: str | Dict[str, Any],
llm_config: Dict[str, Any] = {},
is_termination_msg=lambda x: x.get("content", "")
and x.get("content", "").endswith("TERMINATE"),
human_input_mode="NEVER",
max_consecutive_auto_reply=10,
code_execution_config={
"work_dir": "coding",
"use_docker": False,
},
**kwargs,
):
super().__init__(agent_config, llm_config=llm_config)
self.user_proxy = UserProxyAgent(
name="User_Proxy",
is_termination_msg=is_termination_msg,
human_input_mode=human_input_mode,
max_consecutive_auto_reply=max_consecutive_auto_reply,
code_execution_config=code_execution_config,
**kwargs,
)
self.assistant.register_proxy(self.user_proxy)
def chat(self, message: str, use_cache=False, **kwargs):
with Cache.disk() as cache:
self.user_proxy.initiate_chat(
self.assistant,
message=message,
cache=cache if use_cache else None,
**kwargs,
)
print("Current chat finished. Resetting agents ...")
self.reset()
def reset(self):
self.user_proxy.reset()
self.assistant.reset()
class SingleAssistantRAG(SingleAssistant):
def __init__(
self,
agent_config: str | Dict[str, Any],
llm_config: Dict[str, Any] = {},
is_termination_msg=lambda x: x.get("content", "")
and x.get("content", "").endswith("TERMINATE"),
human_input_mode="NEVER",
max_consecutive_auto_reply=10,
code_execution_config={
"work_dir": "coding",
"use_docker": False,
},
retrieve_config={},
rag_description="",
**kwargs,
):
super().__init__(
agent_config,
llm_config=llm_config,
is_termination_msg=is_termination_msg,
human_input_mode=human_input_mode,
max_consecutive_auto_reply=max_consecutive_auto_reply,
code_execution_config=code_execution_config,
**kwargs,
)
assert retrieve_config, "retrieve config cannot be empty for RAG Agent."
rag_func, rag_assistant = get_rag_function(retrieve_config, rag_description)
self.rag_assistant = rag_assistant
register_function(
rag_func,
caller=self.assistant,
executor=self.user_proxy,
description=rag_description if rag_description else rag_func.__doc__,
)
def reset(self):
super().reset()
self.rag_assistant.reset()
class SingleAssistantShadow(SingleAssistant):
def __init__(
self,
agent_config: str | Dict[str, Any],
llm_config: Dict[str, Any] = {},
is_termination_msg=lambda x: x.get("content", "")
and x.get("content", "").endswith("TERMINATE"),
human_input_mode="NEVER",
max_consecutive_auto_reply=10,
code_execution_config={
"work_dir": "coding",
"use_docker": False,
},
**kwargs,
):
super().__init__(
agent_config,
llm_config=llm_config,
is_termination_msg=is_termination_msg,
human_input_mode=human_input_mode,
max_consecutive_auto_reply=max_consecutive_auto_reply,
code_execution_config=code_execution_config,
**kwargs,
)
if isinstance(agent_config, dict):
agent_config_shadow = agent_config.copy()
agent_config_shadow["name"] = agent_config["name"] + "_Shadow"
agent_config_shadow["toolkits"] = []
else:
agent_config_shadow = agent_config + "_Shadow"
self.assistant_shadow = FinRobot(
agent_config,
toolkits=[],
llm_config=llm_config,
proxy=None,
)
self.assistant.register_nested_chats(
[
{
"sender": self.assistant,
"recipient": self.assistant_shadow,
"message": instruction_message,
"summary_method": "last_msg",
"max_turns": 2,
"silent": True, # mute the chat summary
}
],
trigger=instruction_trigger,
)
"""
Multi Agent Workflows
"""
class MultiAssistantBase(ABC):
def __init__(
self,
group_config: str | dict,
agent_configs: List[
Dict[str, Any] | str | ConversableAgent
] = [], # overwrites previous config
llm_config: Dict[str, Any] = {},
user_proxy: UserProxyAgent | None = None,
is_termination_msg=lambda x: x.get("content", "")
and x.get("content", "").endswith("TERMINATE"),
human_input_mode="NEVER",
max_consecutive_auto_reply=10,
code_execution_config={
"work_dir": "coding",
"use_docker": False,
},
**kwargs,
):
self.group_config = group_config
self.llm_config = llm_config
if user_proxy is None:
self.user_proxy = UserProxyAgent(
name="User_Proxy",
is_termination_msg=is_termination_msg,
human_input_mode=human_input_mode,
max_consecutive_auto_reply=max_consecutive_auto_reply,
code_execution_config=code_execution_config,
**kwargs,
)
else:
self.user_proxy = user_proxy
self.agent_configs = agent_configs or group_config.get("agents", [])
assert self.agent_configs, f"agent_configs is required."
self.agents = []
self._init_agents()
self.representative = self._get_representative()
def _init_single_agent(self, agent_config):
if isinstance(agent_config, ConversableAgent):
return agent_config
else:
return FinRobot(
agent_config,
llm_config=self.llm_config,
proxy=self.user_proxy,
)
def _init_agents(self):
agent_dict = defaultdict(list)
for c in self.agent_configs:
agent = self._init_single_agent(c)
agent_dict[agent.name].append(agent)
# add index indicator for duplicate name/title
for name, agent_list in agent_dict.items():
if len(agent_list) == 1:
self.agents.append(agent_list[0])
continue
for idx, agent in enumerate(agent_list):
agent._name = f"{name}_{idx+1}"
self.agents.append(agent)
@abstractmethod
def _get_representative(self) -> ConversableAgent:
pass
def chat(self, message: str, use_cache=False, **kwargs):
with Cache.disk() as cache:
self.user_proxy.initiate_chat(
self.representative,
message=message,
cache=cache if use_cache else None,
**kwargs,
)
print("Current chat finished. Resetting agents ...")
self.reset()
def reset(self):
self.user_proxy.reset()
self.representative.reset()
for agent in self.agents:
agent.reset()
class MultiAssistant(MultiAssistantBase):
"""
Group Chat Workflow with multiple agents.
"""
def _get_representative(self):
def custom_speaker_selection_func(
last_speaker: autogen.Agent, groupchat: autogen.GroupChat
):
"""Define a customized speaker selection function.
A recommended way is to define a transition for each speaker in the groupchat.
Returns:
Return an `Agent` class or a string from ['auto', 'manual', 'random', 'round_robin'] to select a default method to use.
"""
messages = groupchat.messages
if len(messages) <= 1:
return groupchat.agents[0]
if last_speaker is self.user_proxy:
return groupchat.agent_by_name(messages[-2]["name"])
elif "tool_calls" in messages[-1] or messages[-1]["content"].endswith(
"TERMINATE"
):
return self.user_proxy
else:
return groupchat.next_agent(last_speaker, groupchat.agents[:-1])
self.group_chat = GroupChat(
self.agents + [self.user_proxy],
messages=[],
speaker_selection_method=custom_speaker_selection_func,
send_introductions=True,
)
manager_name = (self.group_config.get("name", "") + "_chat_manager").strip("_")
manager = GroupChatManager(
self.group_chat, name=manager_name, llm_config=self.llm_config
)
return manager
class MultiAssistantWithLeader(MultiAssistantBase):
"""
Leader based Workflow with multiple agents connected to a leader agent through nested chats.
Group config has to follow the following structure:
{
"leader": {
"title": "Leader Title",
"responsibilities": ["responsibility 1", "responsibility 2"]
},
"agents": [
{
"title": "Employee Title",
"responsibilities": ["responsibility 1", "responsibility 2"]
}, ...
]
}
"""
def _get_representative(self):
assert (
"leader" in self.group_config and "agents" in self.group_config
), "Leader and Agents has to be explicitly defined in config."
assert (
self.agent_configs
), "At least one agent has to be defined in the group config."
# We consider only two situations for now: all same name / title or all different
need_suffix = (
len(set([c["title"] for c in self.agent_configs if isinstance(c, dict)]))
== 1
)
group_desc = ""
for i, c in enumerate(self.agent_configs):
if isinstance(c, ConversableAgent):
group_desc += c.description + "\n\n"
else:
name = c["title"] if "title" in c else c.get("name", "")
name = name.replace(" ", "_").strip() + (
f"_{i+1}" if need_suffix else ""
)
responsibilities = (
"\n".join([f" - {r}" for r in c.get("responsibilities", [])]),
)
group_desc += f"Name: {name}\nResponsibility:\n{responsibilities}\n\n"
self.leader_config = self.group_config["leader"]
self.leader_config["group_desc"] = group_desc.strip()
# Initialize Leader
leader = self._init_single_agent(self.leader_config)
# Register Leader - Agents connections
for agent in self.agents:
self.user_proxy.register_nested_chats(
[
{
"sender": self.user_proxy,
"recipient": agent,
"message": partial(order_message, agent.name),
"summary_method": "reflection_with_llm",
"max_turns": 10,
"max_consecutive_auto_reply": 3,
}
],
trigger=partial(
order_trigger, name=leader.name, pattern=f"[{agent.name}]"
),
)
return leaderin functional folder, there are analyzer.py, charting.py, coding.py, quantitative.py, rag.py, ragquery.py, reportlab.py, text.py.
What’s key is the coding.py, where the execution of python is defined as
import os
from typing_extensions import Annotated
from IPython import get_ipython
default_path = "coding/"
class IPythonUtils:
def exec_python(cell: Annotated[str, "Valid Python cell to execute."]) -> str:
"""
run cell in ipython and return the execution result.
"""
ipython = get_ipython()
result = ipython.run_cell(cell)
log = str(result.result)
if result.error_before_exec is not None:
log += f"\n{result.error_before_exec}"
if result.error_in_exec is not None:
log += f"\n{result.error_in_exec}"
return log
def display_image(
image_path: Annotated[str, "Path to image file to display."]
) -> str:
"""
Display image in Jupyter Notebook.
"""
log = __class__.exec_python(
f"from IPython.display import Image, display\n\ndisplay(Image(filename='{image_path}'))"
)
if not log:
return "Image displayed successfully"
else:
return log
class CodingUtils: # Borrowed from https://microsoft.github.io/autogen/docs/notebooks/agentchat_function_call_code_writing
def list_dir(directory: Annotated[str, "Directory to check."]) -> str:
"""
List files in choosen directory.
"""
files = os.listdir(default_path + directory)
return str(files)
def see_file(filename: Annotated[str, "Name and path of file to check."]) -> str:
"""
Check the contents of a chosen file.
"""
with open(default_path + filename, "r") as file:
lines = file.readlines()
formatted_lines = [f"{i+1}:{line}" for i, line in enumerate(lines)]
file_contents = "".join(formatted_lines)
return file_contents
def modify_code(
filename: Annotated[str, "Name and path of file to change."],
start_line: Annotated[int, "Start line number to replace with new code."],
end_line: Annotated[int, "End line number to replace with new code."],
new_code: Annotated[
str,
"New piece of code to replace old code with. Remember about providing indents.",
],
) -> str:
"""
Replace old piece of code with new one. Proper indentation is important.
"""
with open(default_path + filename, "r+") as file:
file_contents = file.readlines()
file_contents[start_line - 1 : end_line] = [new_code + "\n"]
file.seek(0)
file.truncate()
file.write("".join(file_contents))
return "Code modified"
def create_file_with_code(
filename: Annotated[str, "Name and path of file to create."],
code: Annotated[str, "Code to write in the file."],
) -> str:
"""
Create a new file with provided code.
"""
directory = os.path.dirname(default_path + filename)
os.makedirs(directory, exist_ok=True)
with open(default_path + filename, "w") as file:
file.write(code)

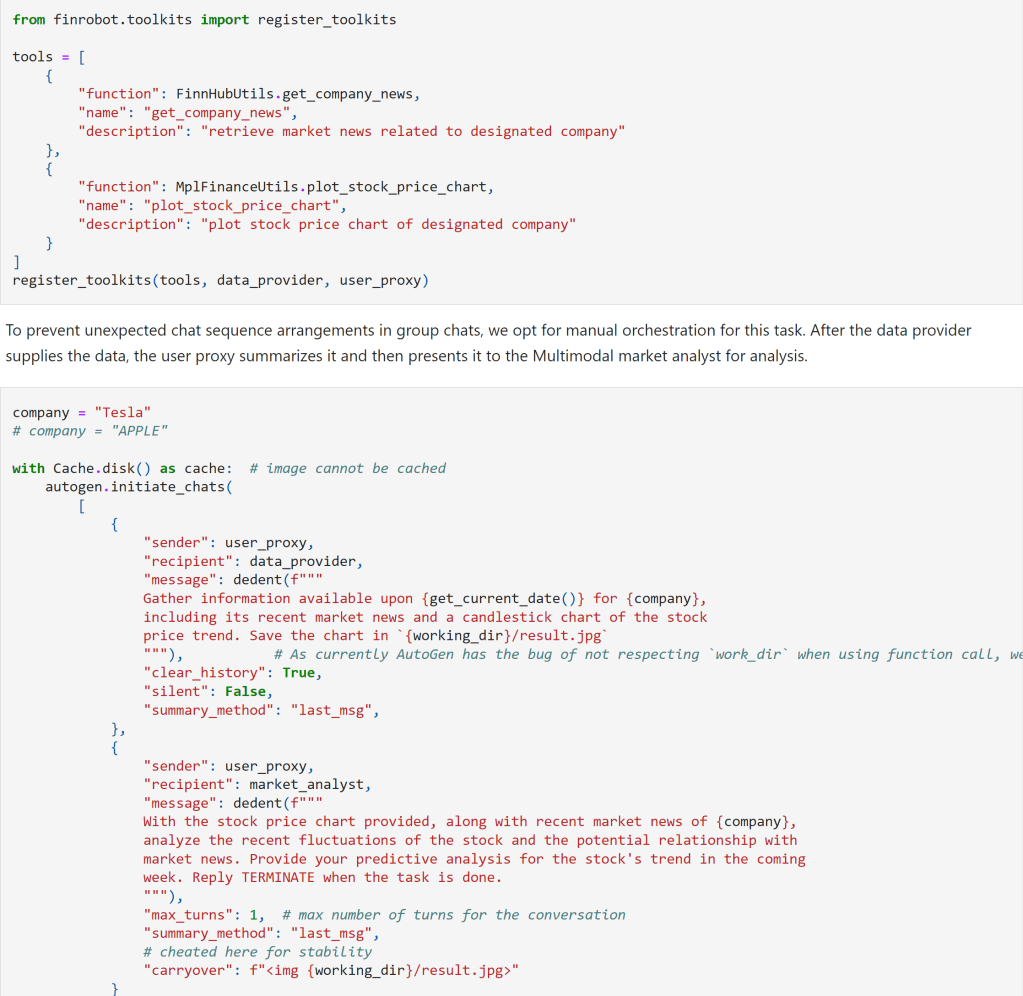

return "File created successfully"Now to see how these auto agents lined up in place to work: imm_agent_mplfinance.ipynb, which set up a multimodal agent with GPT-4v using the MultimodalConversableAgent provided in AugoGen. for this task, several agents are needed:

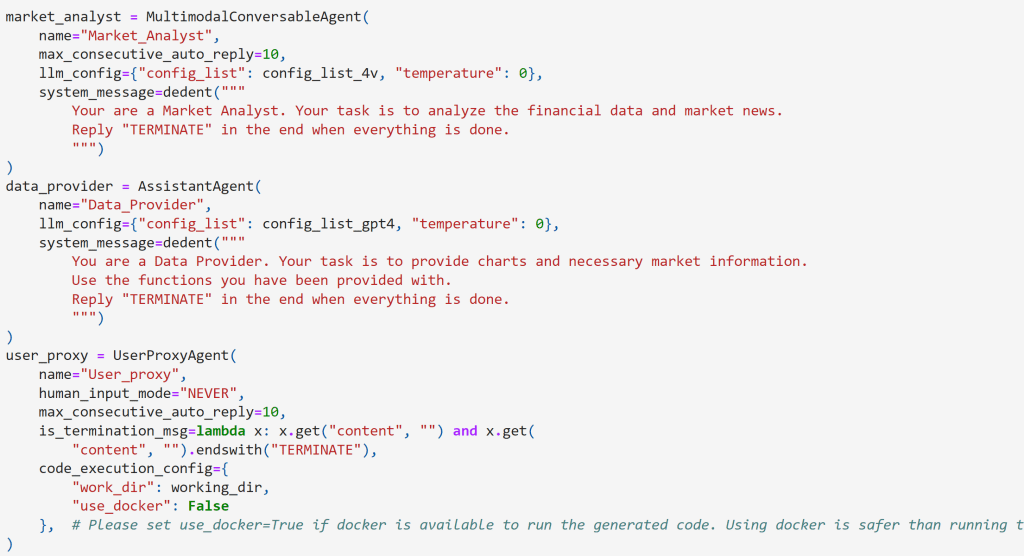

a normal llm agent as data provider who call charting function and provide instructions for multimodal agent;
a multimodal agent as market analyst who extract the information from the chart and analyze the future trend of the stock;
a user proxy to execute the python functions and control the conversation.
Next step is to follow the thread to create a simpler QC agent.
Naixian Zhang
